R-Panel vs. PBR Panels: Which One Is Right for Your Project?
Table Of Contents:
If you walk into any metal supply yard and ask for "the panel everyone uses for shops," somebody will point you to two products that look almost the same: R-Panel and PB.
They have the same color options, the same 36-inch width, and the same trapezoidal ribs running down the length. Even most builders use the names interchangeably in casual conversation, which is part of why this gets confusing. And to the casual observer, it all looks the same. By the time you’re done, trying to figure things out, the only PBR you’d care for is a nice, cold one.
But they're not the same panel. The difference comes down to a single design detail that determines where each one belongs on a building. Get it right, and your roof sheds water for decades. Get it wrong, and you're chasing leaks or paying for siding that's overbuilt for the job.
At Fairlie Metal House, we fabricate both in our shop just outside Commerce, Texas, so we've watched contractors get this decision right (and wrong) for years. So let’s break down the differences between them, and by the end, you’ll know exactly which panel fits your project, your budget, and your building type.
TL;DR - R-Panel vs. PBR Panels
- R-Panel and PBR panels look almost identical, but PBR (Purlin Bearing Rib) has an extra leg that improves weather-tightness.
- R-Panel is ideal for wall siding and steep-pitched roofs where water runoff is fast, and a budget-friendly option is preferred.
- PBR is superior for all roofing applications, especially low-slope roofs, due to its tighter seam seal.
- PBR also offers better structural performance, making it the panel of choice for open-framed buildings like pole barns.
- Many experienced builders use both: PBR on the roof for maximum performance, and R-Panel on the walls for cost savings.
What Is an R-Panel?
An R-Panel is a wide, exposed-fastener metal panel with a trapezoidal rib pattern. You’ve probably seen thousands of these panels without realizing it: They’re on warehouses, big-box stores, ag structures, and large shop buildings, all over Texas.
If you like reading up on specs, we’ve got some for you right here. R-Panels:
- Have a 36" coverage width
- Have a 9” or 12” rib spacing
- Have a rib height around 1-1/4"
- Available in 26 and 29 gauge
- Coated with G-100 galvanized substrate
- Covered by a 40-year limited warranty

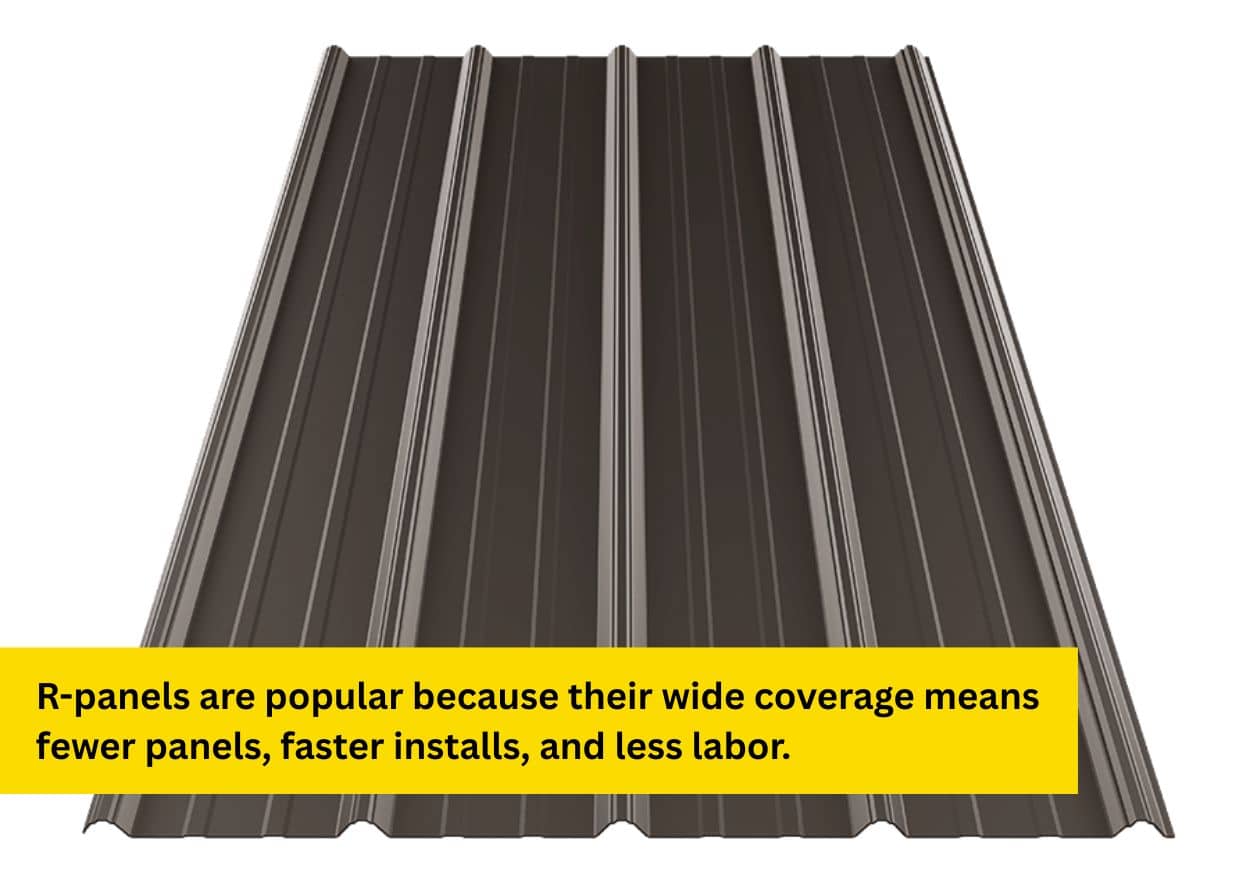

R-panels are popular with builders partly because of their size: wide coverage means fewer panels, faster installs, and less labor. They’re affordable, tough, and show up on more job sites than just about any other profile.
What Is a PBR Panel?
PBR, short for Purlin Bearing Rib, looks a lot like R-Panel, but there’s a small extra leg on the edge rib that sits flat against the purlin. That leg changes how the panel acts at the overlap.
PBR has similar specs to R-panel, such as 36” coverage, availability in 26 and 29 gauge, G-100 galvanized substrate, and a 40-year limited warranty. But that’s where the similarities end. PBR panel differences are:
- 12" rib spacing only
- 1-3/16" rib height
- And of course, that bearing rib.
Why the extra leg? It creates a stronger, flatter overlap at the seam, which improves weather-tightness and structural performance. The tighter fit makes them suitable for residential and commercial roofs, low-slope applications, and installations over open framing.
If we were to compare the tightness of these panels in terms of the 2025 NFL regular season defense rankings, R-Panel is the Denver Broncos, while PBR is the Houston Texans.

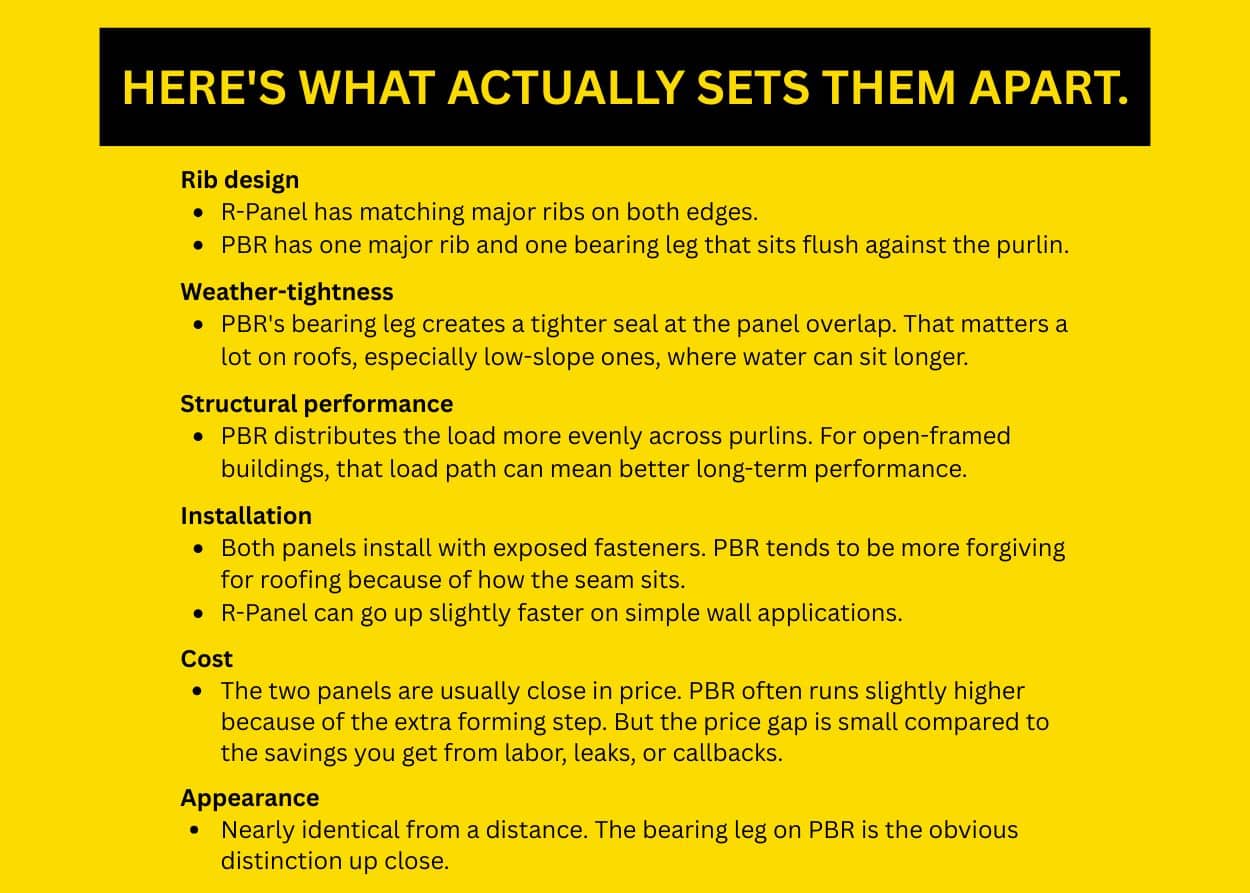

Key Differences Between R-Panel and PBR Panels
If you held an R-Panel and a PBR panel side by side in our shop, you'd probably need a second look to spot the differences. The ribs, the width, the color options, even the way they stack on the trailer, all look pretty much the same.
But the differences are real, and they matter in the places where metal panels usually fail: at the seams, under load, and over time. Here's what actually sets them apart.
- Rib design
- R-Panel has matching major ribs on both edges.
- PBR has one major rib and one bearing leg that sits flush against the purlin.
- Weather-tightness
- PBR's bearing leg creates a tighter seal at the panel overlap. That matters a lot on roofs, especially low-slope ones, where water can sit longer.
- Structural performance
- PBR distributes the load more evenly across purlins. For open-framed buildings, that load path can mean better long-term performance.
- Installation
- Both panels install with exposed fasteners. PBR tends to be more forgiving for roofing because of how the seam sits.
- R-Panel can go up slightly faster on simple wall applications.
- Cost
- The two panels are usually close in price. PBR often runs slightly higher because of the extra forming step. But the price gap is small compared to the savings you get from labor, leaks, or callbacks.
- Appearance
- Nearly identical from a distance. The bearing leg on PBR is the obvious distinction up close.
Knowing the differences is one thing, but knowing which one belongs on your build is another. That's where it gets practical.
Best Uses for Each Panel Type
Here's where the rubber meets the road. Or, you know, when dads want to make their kids groan, where the panel meets the purlin.
Both panels have their place. The trick is knowing where each one shines so you're not paying for performance you don't need, or skimping where you actually do.
R-Panel is the better pick for:
- Wall panels on shops, ag buildings, and commercial structures. Walls don't deal with standing water or snow load, so the simpler seam works fine.
- Steeper-pitched roofs. When water moves off fast, the tighter PBR seam matters less.
- Budget-friendly siding installs. R-Panel is usually slightly cheaper, so those savings add up when you’re cladding a large wall.
- Quick siding jobs on barns and outbuildings. Wide coverage, fast install, done.
- Open-sided structures like loafing sheds or hay barns. You're not trying to keep the weather out of a building that's already open to the elements.
PBR is the better pick for:
- Any roof, especially a low-slope roof. That bearing leg seals the seam where water lingers longest.
- Residential metal roofs. You want the panel that lasts 40 or 50 years without giving you trouble.
- Pole barns with open purlins. PBR is literally engineered for this application. The name says it: Purlin Bearing Rib.
- Commercial roofs on warehouses, shops, and storage buildings. Tighter seams mean fewer callbacks and fewer chances for leaks to develop.
- Anywhere where weather-tightness is non-negotiable. If a leak could potentially damage what's underneath, go with PBR.

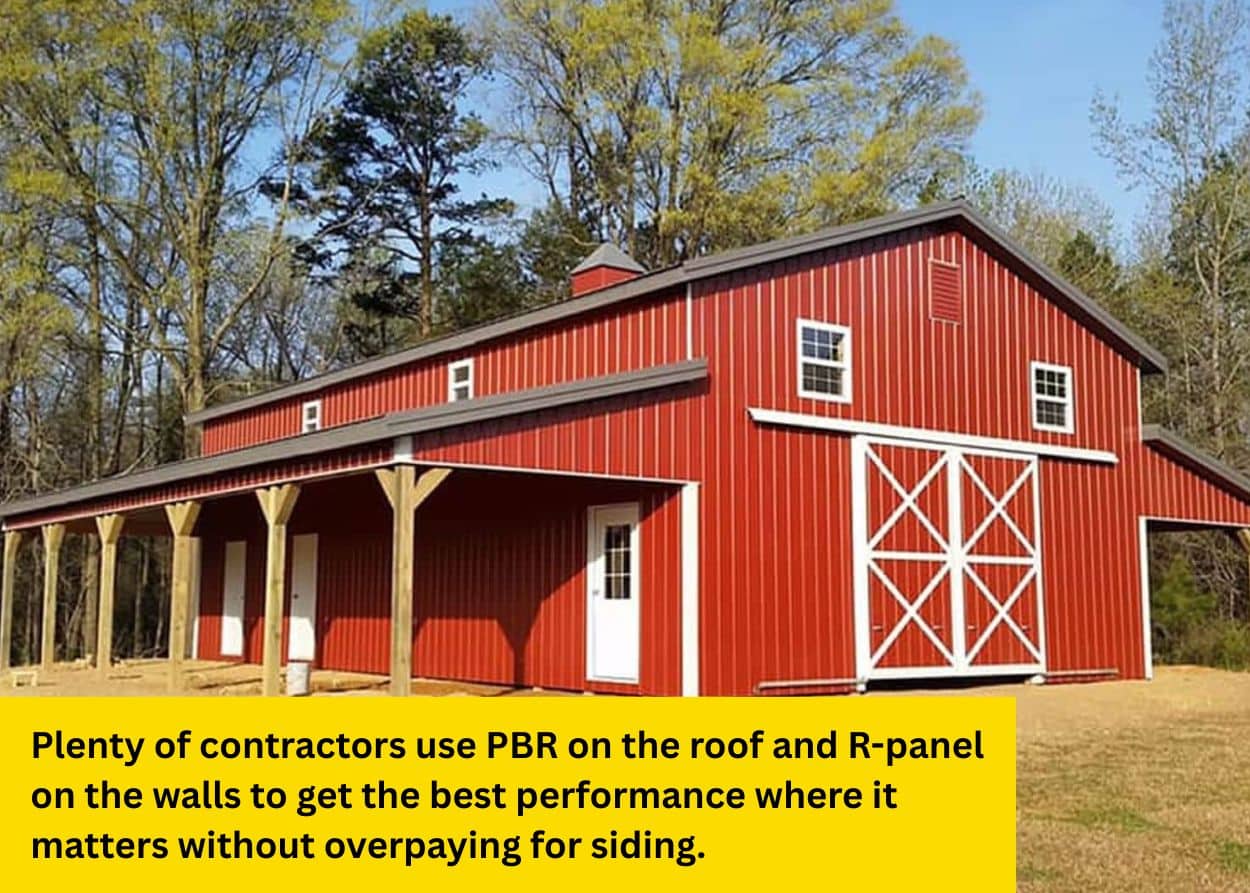

And here's something many homeowners don't know. Plenty of contractors use both panels on the same building: PBR on the roof, R-Panel on the walls. It's a smart way to get the best performance where you need it without overpaying for siding that's just going to sit there and look good.
It's not a compromise. It's actually how a lot of experienced builders spec their own shops and barns. They put the performance where they need it and save the rest for the interior finish-out, the concrete, or just to keep the project on budget.
Which Panel Should You Choose?
Three questions will help you determine which panel you’ll need:
- Is this for a roof or a wall?
If it's a wall, R-Panel is almost always enough, since walls don't deal with standing water, snow load, or the same kind of weather pressure that roofs do. You're paying for siding that needs to look good, shed rain, and last, so R-Panel does all three.
If it's a roof, PBR is usually the smarter call. That little bearing leg at the seam pays off when water sits on your panels during a slow Texas drizzle or runs off after a storm.
- What's the pitch?
Steeper pitches (4:12 and up) are more forgiving. Water moves off fast, so the seam design matters less. Either panel can work, though PBR still has the edge.
Lower pitches (anything under 3:12) are where PBR really pulls ahead. Water lingers, and wind drives rain sideways. You want the tightest seam you can get.
- What's the framing system?
Your framing is a factor, too. Are you building over open purlins with no decking underneath? PBR’s bearing leg is literally designed for that application.
For installation over a solid substrate, such as plywood or OSB, either panel works fine. You've got a continuous surface backing up the seams, which takes some of the pressure off the panel itself.
Don't forget, the panel profile is just one piece of the puzzle. The right gauge of metal resists hail dents, warps less under intense heat, or saves you money on materials if you live in a milder climate. A long-lasting finish ensures your investment doesn’t corrode away or let the elements in. Color lets you pick a structure that fits your personality or aesthetics. Pick the right panel for the right job, and a 29-gauge PBR in the right Sherwin-Williams color can outlast the rest of your building if it's installed right.
Or, skip the head-scratching entirely and give us a call. Five minutes on the phone with someone who's worked with both panels will save you more headaches than any spec sheet ever will.
Bring Us Your Plans
R-Panel and PBR are close cousins, but they're built for different jobs. The right call depends on where the panel is going and what you're asking it to do.
If you're still not sure, that's normal. Bring us your plans, or just a rough sketch on a napkin. We've seen worse.

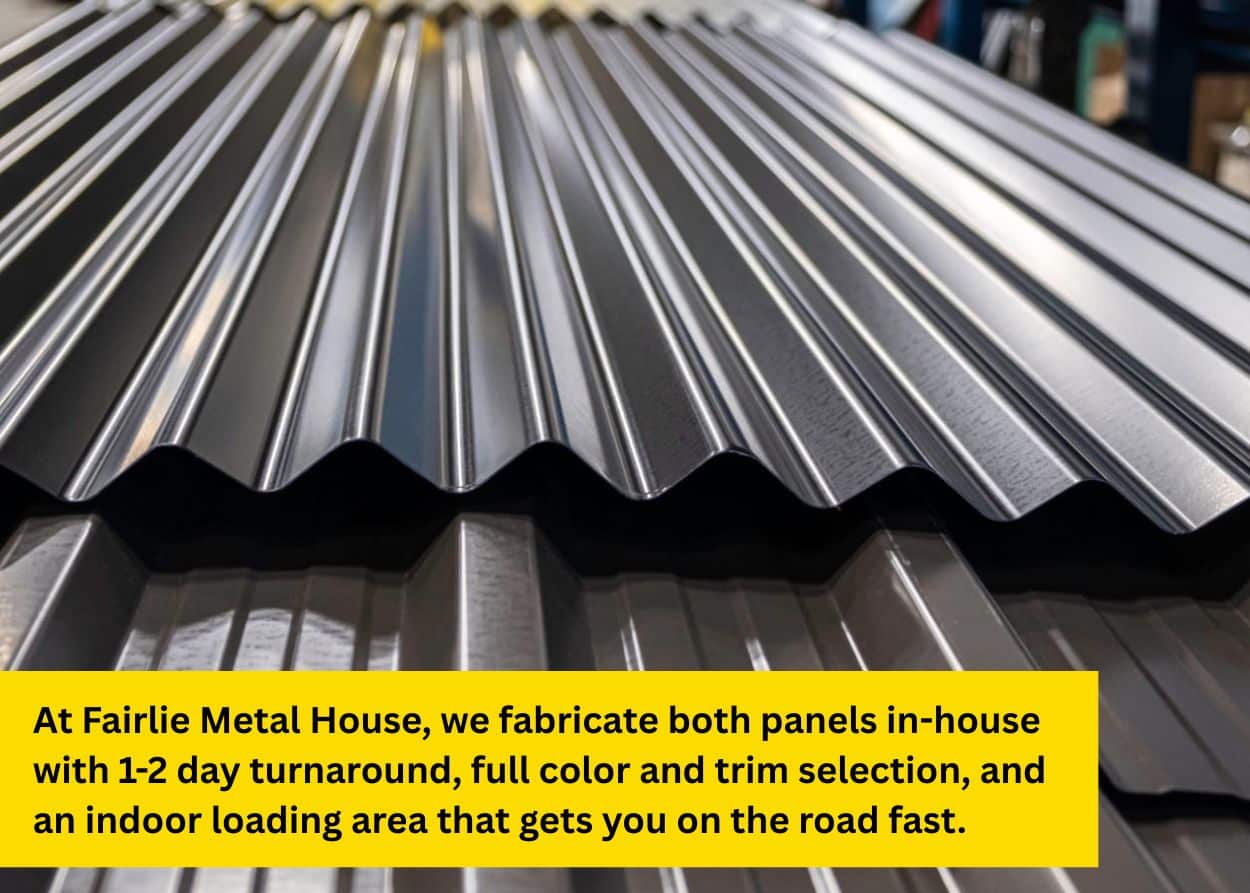

At Fairlie Metal House, we fabricate both R-Panel and PBR panels in-house, with an average turnaround of 1-2 days, full color and trim selection from inventory, and an indoor loading area that gets you on the road fast.
Contact us today! We proudly serve Greenville, Sulphur Springs, Paris, Bonham, Rockwall, Plano, Forney, and the rest of Northeast Texas, and we’re excited to serve you!
